Thursday, 20 July 2017

We [the UK] are going back to the Top Table as far as Nuclear is concerned !

Now this is how to deliver a presentation - without hesitation, repetition or deviation - plus a little bit of irony and humour - and with hardly a glance at any notes.

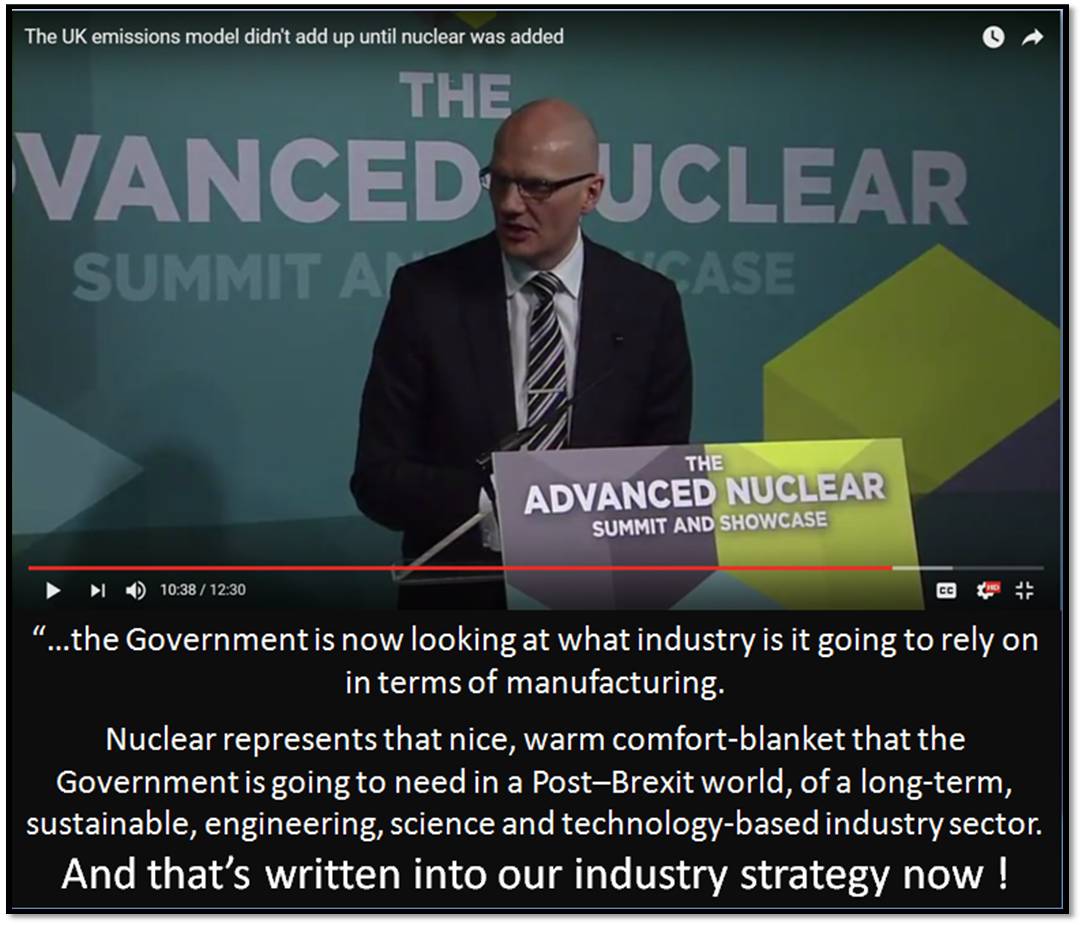

Professor Paul Howarth, Chief Executive of the National Nuclear Laboratory [NNL] implying deals on the future of nuclear have already been done in the Corridors of Power.

It's [at least] 75 GW of Nuclear, and more probably
100 GW, by 2080, to have any chance of meeting
our mandatory carbon targets.


“…the Government is now looking at what industry is it going to rely on in terms of manufacturing.
Nuclear represents that nice, warm comfort-blanket that the Government is going to need in a Post–Brexit world, of a long-term, sustainable, engineering, science and technology-based industry sector.

And that’s written into our industry strategy now !

Thursday, 8 June 2017

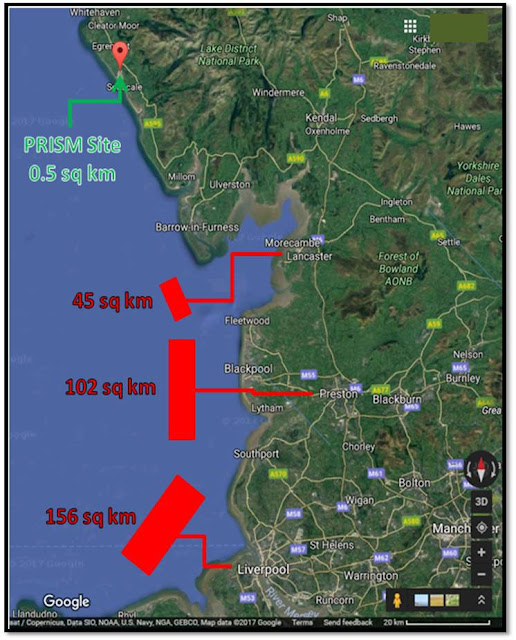

930,277 Lancastrians reject 299 sq km of Offshore Wind in Favour of a Single Sellafield Reactor.

A Sellafield based Nuclear Reactor
can generate all of the electricity [domestic; commercial; industrial] used by a population of 942,424 people for 60 years.  That's more than what is required for the Cities of Lancaster, Preston and Liverpool.
Population Supplied: 930,277
--------------------//--------------------
6 Offshore Wind Farms
Off the North West Coast of England are :
West of Duddon Sands; Walney; Robin Rigg; Ormonde; Barrow; Burbo Bank.
4C Offshore

A total of 363 x 3.47 MW [average] turbines occupy 188 sq km, have an Installed Capacity of 1,260 MW, have an Average Lifespan of 22.5 years and cost £3,655 million
[£2.9 million/MW Installed]

'Homes powered annually': 762,507.
BEIS figure: 3,994 kWh/home per year.
So - Electricity generated per hour: 347,654,447 W
 @594 W/person
Population Supplied: 585,277
--------------------//--------------------
To supply 930,277 would:
Require 577 x 3.47 MW Turbines
Occupy an Area of 299 sq km
--------------------//--------------------
Have an Installed Capacity of 2,002 MW
Cost £5,806 million
--------------------//--------------------
To supply for 60 years, all of this Offshore Wind Farm Capacity has to be built a 2nd Time and then Generate for 2/3 of the life of the 3rd Build - That's a factor of X2.66' !
That would cost: £15,487 million.
[The output from 1,539 x 3.47 MW turbines]
--------------------//--------------------
The most expensive form of Pressurised Water Reactor, the the 3,200 MW EPR at Hinkley Point, has a capital cost of £18 Billion + a 'delayed' cost of £7.2 billion for decommissioning and waste handling and storage. That works out at £7,875 million/MW.
--------------------//--------------------
At the same rate in £/MW for capital cost, decommissioning, waste handling and storage, a 620 MW SMR would cost:                    £4,883 million.

Offshore Wind Turbines cost 3.17X more than SMRs !
-----------------------------//-----------------------------

Tuesday, 6 June 2017

Sellafield 24/7 Electricity to supply 930,277 Lancastrians and Save 94,153,882 tonne of CO2 Emissions.

In 2016, 338.6 TWh of electricity were generated in the UK

In 2016, the population of the UK was 65,111,143

That means every hour of every day, every man, woman and child in the UK 'used' 594 Watts - that includes the electricity used domestically and by industry, commerce, schools, hospitals - and everything that,
for each and everyone of us, provides our
wonderful way of life.
------------------//-----------------
On a site the size of a large supermarket, the GE-Hitachi PRISM Reactor has an installed capacity of 622 MW. It will operate at 90% capacity factor for 60 years

Every hour it will generate 559,800,000 Watts of 24/7, low-carbon electricity.

So it is capable of supplying:
942,424 people, every year for 60 years !


100 miles of National Grid, serving:
City of Lancaster: Population 138,375
Preston Built Up Area: Population 313,322
City of Liverpool: Population 478,580
Grand Total: 930,277
List of Towns and Cities in Lancashire by Population

With coal disappearing from the electricity generating scene, a conservative estimation of emissions saved would be to consider displacing gas-fired generation:
"...electricity supplied by gas (320 tonnes of carbon dioxide per GWh)..."
P. 15 - Electricity Generation. CO2 Emissions by Fuel Type

--------------------//--------------------
From a tiny supermarket-sized site, this single PRISM installation will generate 4,904 GWh of 24/7 electricity and save 1,569,231 t CO2 emissions, every year for 60 years.
--------------------//--------------------

THAT'S SAVING EMISSIONS OF 94,153,882 t CO2



Sunday, 26 February 2017

Wind and Solar Power Drain the Lifeblood Out Of The Economy !

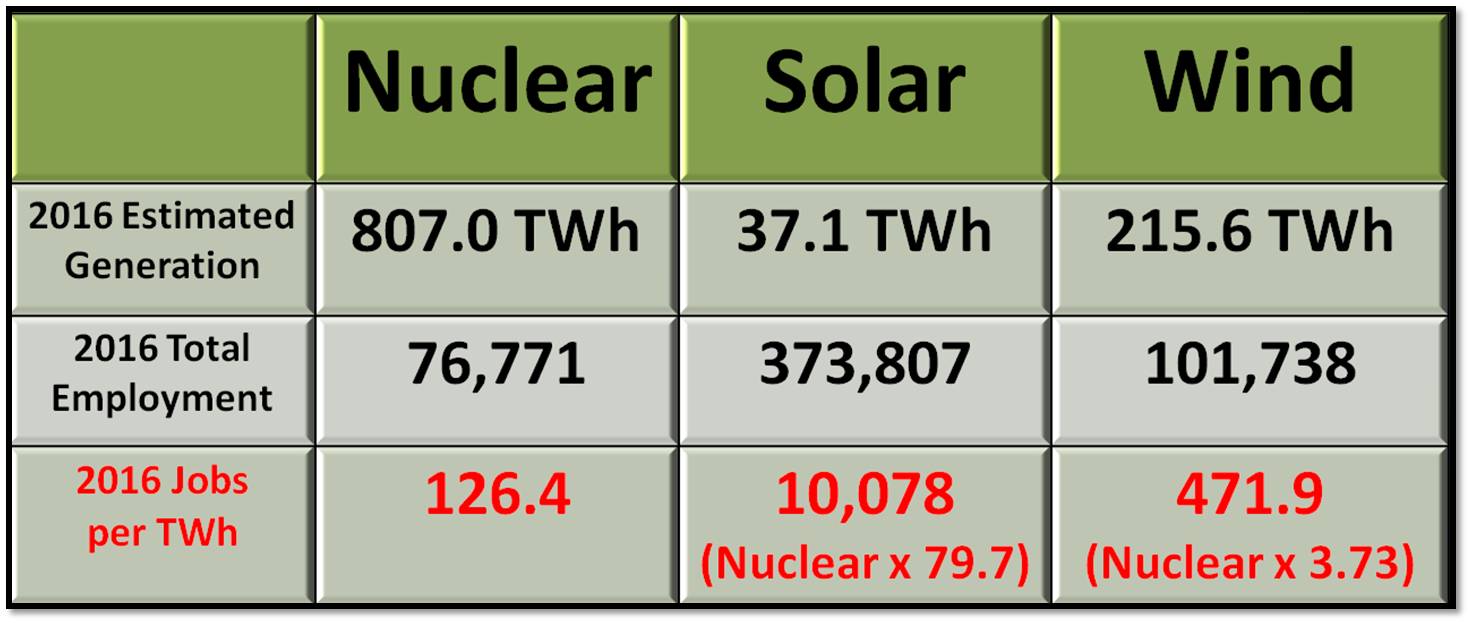

Hot off the press:     All in the one Government document - both employment data and TWh generated in 2016, for Solar, Wind and Nuclear Power:



From the enlarged view it's possible measure the bar-lengths and accurately estimate the TWh generated for Nuclear - Solar - Wind, using the 1000 TWh line as a datum. TWh generated for the whole of 2016 taken to be the estimate for 'Sept 2016 YTD' x 4/3.



"...Energy is the lifeblood of the economy.
The primary
objective of the
energy sector
is to supply
cost-effective
energy to the
broader economy,
allowing it to
grow and increase the standard of living of its citizens.

Artificially pumping up employment in the energy sector per se - and thereby driving down productivity,
while driving up costs to the broader economy - is counterproductive to overall net job creation and economic growth. It is a sign of increased efficiency if more energy can be produced and delivered with fewer workers, because this expands the overall output potential of the economy..."

Nuclear Power - 1 Job = 100% UEL (a)
Wind Power ----- 1 Job = 27% UEL
Solar Power ----- 1 Job = 1.25% UEL
Note (a): 'Use of Economic Lifeblood'


Tuesday, 7 February 2017

Secrets Revealed About The UK's Biggest Onshore Wind Farm - Criminal Levels Of Environmental Impact!

The topography of the area is of a relatively flat plateau with occasional hills rising above the flatter plateau landmass, all of which is overlain with deep peat, in some places reaching down past 8 meters.

On top of this is found a mixture of plants that are specialised in living in the low nutrient peat environment and which give the area its distinctive appearance.

One further factor had to come into play for the peat to form of course - a high rainfall (oceanic) climate. This coupled with the underlying geology of Whitelee meant that blanket bog formed over the scarred hills.

No-one knows exactly when blanket bogs began to form but its accepted that it was somewhere between 6000 and 9000 years ago.
Whitelee Landscape



"...With the current windfarm covering 78 km²..."
But 59 such wind farms are required to deliver the same amount of [Intermittent] electricity as the [24/7] electricity delivered by Hinkley Point C

59 x 78 km² = 4,602 km²

"...The topography of the area is of a relatively flat plateau with occasional hills rising above the flatter plateau landmass, all of which is overlain with deep peat, in some places reaching down past 8 meters. On top of this is found a mixture of plants that are specialised in living in the low nutrient peat environment and which give the area its distinctive appearance..."

  • A windfarm constructed sympathetically on peat can produce a positive CO2 return within 3 years of operation. If however the windfarm is poorly built, the CO2 payback can take 30 years - longer than the lifespan of the windfarm
  • About 70% of the roads at Whitelee are built using floating road construction methods because of the deep and sometimes fluid peat
  • 900 hectares of non-native conifer plantation was removed as part of the development of Phase-1 of the windfarm - around 2.25 million trees
  • Deepest peat encountered was 7m. Average peat depth was 3.3m
  • Approximately 850,000m3 of peat excavated and spread

At 7:29, a walk through Whitelee Windfarm and a description of peat removal.

--------------------//--------------------

"...No-one knows exactly when blanket bogs began to form but its accepted that it was somewhere between 6000 and 9000 years ago..."

6,000 to 9,000 years of carbon storage - then it's all released for 20 years [less *unknown* years of carbon payback] of dribbling quantities of intermittent electricity !
  1. *unknown* - because it's modelled and never measured to get actual figures !







Monday, 19 December 2016

What do we Want - Wind Farms ----- Where do we want them - Nature Reserves !!

Hark ! - The cry of the Lesser Spotted Environmentalist.
Habitat:     Urban and Metropolitan Back Yards.
Distribution:     Worldwide.

Then along comes Aikengall II

Comprising of 22 x 3.6 MW turbines with a total of 79.2 MW installed capacity and occupying an area of 6.3 sq km, Aikengall II will deliver 208,138 MWh per year over its 25 year 'Operational Phase'.

That's 5.2 TWh of [intermittent] electricity in total, at a cost of £120 million:
Cost October 21 2016

But Hinkley point C nuclear power plant will deliver 1,513.7 TWh of [24/7] electricity over its 60 year design life, so we'd need to build 191 onshore wind farms of this capacity, occupying an area measuring 35 km x 35 km to deliver as much [intermittent] electricity as Hinkley - perched on its site measuring 830 m x 830 m.

And that would cost:     £34.92 billion
Costing 94% more than Hinkley !!

and just imagine what this does to the pristine ecosystems and rare species on that 1 site:


Monday, 5 December 2016

Wind Energy Industry Shock - Top Spot For Employment Lost to New Civil Engineering Technology !

One of the many proud boasts made by

renewableUK [the voice of wind & marine energy]

is the creation of full time jobs in the onshore and offshore wind energy industries. So proud are they, the figures for 2015 were published in their
'State of the Industry Report 2015'
There are 15,500 'Direct UK wind energy jobs'.
They also published the 'Total [installed wind turbine] capacity' of 13,313 MW.

It is possible to work out the wage cost per kWh of electricity delivered, by assuming the Capacity Factor in 2015 was not wildly dissimilar to the current 30.4%.

13,313 MW @ 30.4% C.F. delivers
Intermittent Electricity every hour, amounting to
4,047,152 kWh



2015 'All' earnings is £27,500 per annum, which for a 40 hour week, 52 weeks a year is £13.22 per hour.

For every hour intermittent electricity from wind is delivered, wages totalling £13.22 x 15,500 are paid
 = £199,622

£199,622 ÷ 4,047,152 kWh = 5 pence/kWh
---------------------//--------------------
How does this compare with 24/7 electricity from Nuclear Power Plants?
---------------------//--------------------

3,200 MW at 90% Capacity Factor delivers
24/7 Electricity every hour, amounting to
2,880,000 kWh

There will be 900 Full Time Jobs at Hinkley.

For every hour 24/7 Electricity from Nuclear Power is delivered, wages totalling £13.22 x 900 will be paid
 = £11,988

£11,988 ÷ 2,880,000 kWh = 0.4 pence/kWh
--------------------//--------------------
The wage bill for every intermittent kWh delivered by Wind Turbines is 12.5X greater than every 24/7 kWh delivered by Nuclear Power.
---------------------//-------------------
But Dr Benjamin Zycher's proposals offer an advanced civil engineering technology which batters the renewables industry into 2nd place for the creation of Dream - Green Jobs !!
Renewable Energy Tax Incentives: How have the recent and pending expirations of key incentives affected the renewable energy industry in the United States?

"...The dream jobs rationale borders on the preposterous...........We could create a lot of employment if we outlawed the use of heavy equipment for digging ditches and mandated instead the use of shovels, or for that matter, spoons.

That sounds pretty ridiculous, doesn't it?

Well, there's no analytic difference between inefficient ditch digging and inefficient power generation as tools with which to pursue increased employment - None!..."
------------------//-----------------
Trouble is though - how much more would our new schools or hospitals cost if all of the groundwork had to be prepared by 1,000s of well paid men and women wielding spoons?
